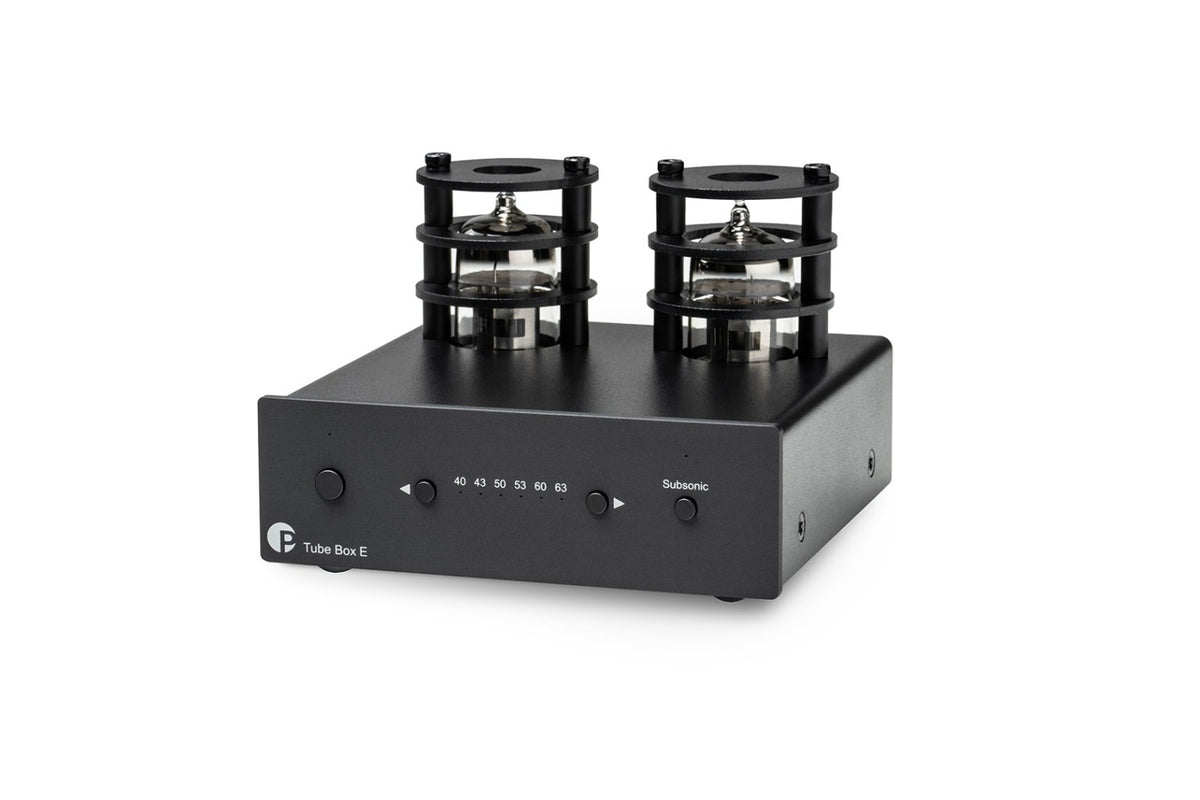

Product details

Specifications


Tubes 2 x ECC83 (12AX 7A)
Input impedance 10 ohms, 100 ohms, 1 kohm, 2 kohms
Input capacitance/impedance 47pF, 147pF, 267pF, 367 pF, 487 pF and 587 pF* / 47 kohms
Input gain 40 dB, 43 dB / 50 dB, 60 dB und 63 dB
Noise floor 77 dB (A weighted) at 40 dB input gain, 65dB (A weighted) at 50 dB and 63 dB input gain
THD <0.03% at 40 dB input gain <0.07% at 50 dB and 63 dB input gain
RIAA-equalisation curve accuracy +/- 0.5 dB/20 Hz - 20 kHz
Subsonic filter at 20 Hz with 18 dB/octave
Input 1 pair RCA/phono sockets
Line-level output 1 pair RCA/phono sockets
Outboard power supply 18 V / 1.000 mA DC, suitable for your country's mains supply
Power consumption 470 mA DC, <1W in standby
Dimensions W x H x D with sockets 103 x 73 x 131 mm
Weight 450 g without power supply

Additional Information

Suitable for MM and MC cartridges
Precise RIAA equalisation in two parts, passive/active
Fully discreet circuit design without OpAmps
2x ECC83 tubes (replaceable)
Front-sided Subsonic filter button
Front-sided Gain control
Ultra low noise circuitry with FET input stage
Dual mono circuitry for optimized channel separation
Polystyrene capacitors used where possible
Gold-plated RCA in- and outputs
Multiple internal power supplies
Well-filtrated high-voltage anode power supply
Available in silver or black
